• 地图数据（.shp）
• 站点经纬度数据（.txt）
• 各站点一段时间以来温度预报的平均偏差数据（.txt）
• 数据下载

• 画出山东省地图及省内气象观测站的位置
• 将各市的日最高（低）温预报偏差（站点平均）按从小到大排序，颜色越深表示预报偏差越大
• 地图中的点越大表示在该站点的预报偏差越大，青色的点表示预报偏差排在后30%的站点
• 鼠标右键点击城市区域，打印城市名称、排位以及对应的预报偏差
• 鼠标左键点击站点，打印站点信息以及对应的预报偏差

1. 导入相应的包

    import shapely
    import numpy as np
    import pandas as pd
    import geopandas as gpd
    import matplotlib.pyplot as plt
    from matplotlib.patches import Polygon
    from matplotlib.colors import BoundaryNorm
    from matplotlib.colorbar import ColorbarBase
    from matplotlib.collections import PatchCollection
    from matplotlib.collections import PathCollection
    ### 使图片中正常显示中文
    plt.rcParams['font.sans-serif']=['SimHei'] #用来正常显示中文标签
    plt.rcParams['axes.unicode_minus']=False #用来正常显示负号


2. 获取站点信息以及各站点预报的平均偏差，将各市内的站点偏差平均得到各市预报的平均偏差

    ### 获取站点信息
    '''
    文件示例：
    station  lat lon height  city
    54709 37.233  116.067 24.8  德州市
    '''
    location = pd.read_csv('nation_stations_sd.txt',sep='\t',encoding="gb2312").sort_values(by='station')
    stations = [str(s) for s in location['station']]
    lats = [round(x,3) for x in location['lat']]
    lons = [round(x,3) for x in location['lon']]
    heights = [round(x,2) for x in location['height']]
    ### 获取各站点预报的平均偏差
    '''
    文件示例：
    station bias_mos
    54709 0.839
    '''
    Ttype = 'min' #or 'max'
    clock = '08' #or '20'
    Ttype_c = {'min':'最低', 'max':'最高'} #for plot
    bias = pd.read_csv('./daily_{0}_{1}'.format(Ttype, clock), sep='\t').sort_values(by='station')
    station_val = [round(v,2) for v in bias['bias_mos']]
    ### 获取各市预报的平均偏差并按偏差从小到大排序
    city_val_df = pd.merge(bias[['station','bias_mos']], location[['station','city']], on='station') \
                    .groupby('city')['bias_mos'].mean().reset_index().sort_values(by='bias_mos')
    city_val_df = city_val_df.assign(order=range(1, city_val_df.shape[0]+1)).set_index('city')


3. 使用geopandas读取地图文件

   ### 使用geopandas读取山东省地图文件
   sd = gpd.read_file('./中国地图/province/sd_city.shp')
   ### 将地图文件的geometry属性转化为Polygon对象并关联相关信息
   patches = []
   values = []
   orders = []
   cities = []
   for poly,city in zip(sd.geometry, sd.NAME99):
       if isinstance(poly, shapely.geometry.polygon.Polygon):
           cities.append(city)
           patches.append(Polygon(np.asarray(poly.exterior)))
           values.append(city_val_df.loc[city]['bias_mos'])
           orders.append(city_val_df.loc[city]['order']-0.5) #for plot
       if isinstance(poly, shapely.geometry.multipolygon.MultiPolygon):
           cities += [city for p in poly]
           patches += [Polygon(np.asarray(p.exterior)) for p in poly]
           values += [city_val_df.loc[city]['bias_mos'] for p in poly]
           orders += [city_val_df.loc[city]['order']-0.5 for p in poly] #for plot
   patches = PatchCollection(patches)
   patches.set_array(np.array(orders))
   patches.set_picker(True)


4. 画山东地图并按各市预报偏差的排序填色

   ### 画山东省地图
   fig, ax = plt.subplots(figsize=(8,6))
   ax.set_title('{0}时起报的24h{1}温'.format(clock, Ttype_c[Ttype]), fontsize=18)
   ax.add_collection(patches, autolim=True)
   ax.autoscale_view()
   ax.get_xaxis().set_visible(False)
   ax.get_yaxis().set_visible(False)
   ax.spines['top'].set_visible(False)  #去掉上边框
   ax.spines['right'].set_visible(False)
   ax.spines['bottom'].set_visible(False)
   ax.spines['left'].set_visible(False)
   cityname_loc = {u'东营':(118.55, 37.58), u'滨州':(117.84, 37.55), u'淄博':(117.97, 36.56), \
                   u'莱芜':(117.68, 36.23), u'潍坊':(119.04, 36.58), u'泰安':(117.04, 36.00), \
                   u'菏泽':(115.69, 35.20), u'济宁':(116.51, 35.24), u'枣庄':(117.33, 34.95), \
                   u'临沂':(118.24, 35.25), u'日照':(119.13, 35.57), u'青岛':(120.30, 36.48), \
                   u'烟台':(120.87, 37.14), u'威海':(121.99, 37.10), u'济南':(117.27, 36.73), \
                   u'聊城':(115.77, 36.48), u'德州':(116.55, 37.14)}
   for cityname, (lon, lat) in cityname_loc.items():
       ax.text(lon, lat, cityname, color='y', ha='center', size='xx-large')
   ### 设置colorbar信息
   cmap = plt.cm.Reds
   bounds = np.linspace(0, city_val_df.shape[0], city_val_df.shape[0]+1)
   norm = BoundaryNorm(bounds, cmap.N)
   ticks = np.linspace(1, city_val_df.shape[0], city_val_df.shape[0])-0.5
   ticklabels = [str(int(t)) for t in np.linspace(1, city_val_df.shape[0], city_val_df.shape[0])]
   ### 创建colorbar
   ax2 = fig.add_axes([0.9, 0.1, 0.03, 0.8])
   ax2.set_title('Order')
   cb = ColorbarBase(ax2, cmap=cmap, norm=norm, ticks=ticks)
   cb.set_ticklabels(ticklabels)
   patches.set_cmap(cmap)
   patches.set_norm(norm)


5. 在地图上画出观测站点的散点图（点的大小对应站点预报偏差大小，青色的点表示偏差排在后30%的站点）

   ### 画观测站点的散点图
   smin = 10
   smax = 100
   interval = np.max(station_val)-np.min(station_val)
   sizes = smin+(smax-smin)*(station_val-np.min(station_val))/interval
   colors = ['Blue' if val<np.percentile(bias['bias_mos'], 70) else 'Aqua' for val in station_val]
   ax.scatter(lons, lats, picker=1, s=sizes, c=colors)


6. 在图中添加交互功能

   ### 在图形中添加交互
   def onpick(event):
       this = event.artist
       ind = event.ind[0]
       button = event.mouseevent.button
       if button==1 and isinstance(this, PathCollection):
           print('站号: {0}  纬度: {1}  经度: {2}  高度: {3}  所属城市: {4}  预报偏差: {5}' \
                 .format(stations[ind], lats[ind], lons[ind], heights[ind], \
                         location.iloc[ind]['city'], station_val[ind]))
       elif button==3 and isinstance(this, PatchCollection):
           print('城市: {0}  排位: {1}  预报偏差: {2}'.format(cities[ind], int(orders[ind]+0.5), \
                                                              round(values[ind],2)))
       return
   fig.canvas.mpl_connect('pick_event', onpick)

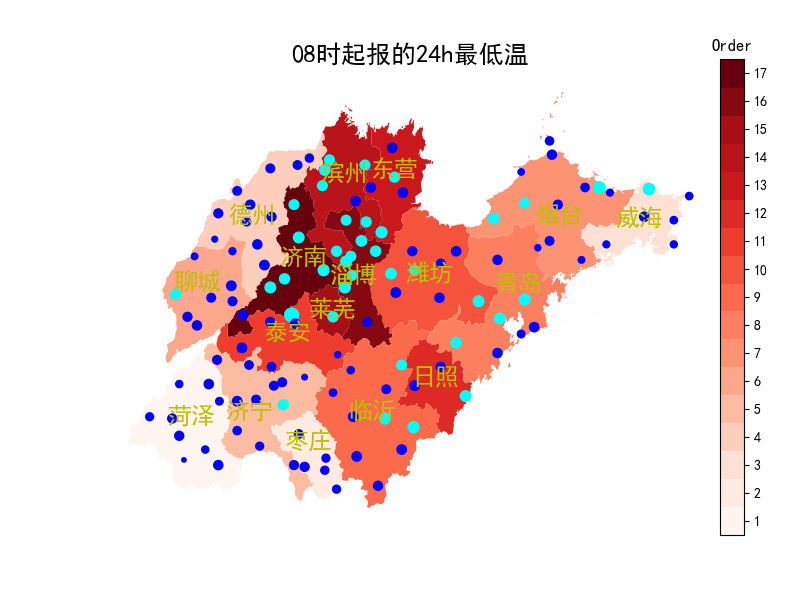

生成地图示例：
